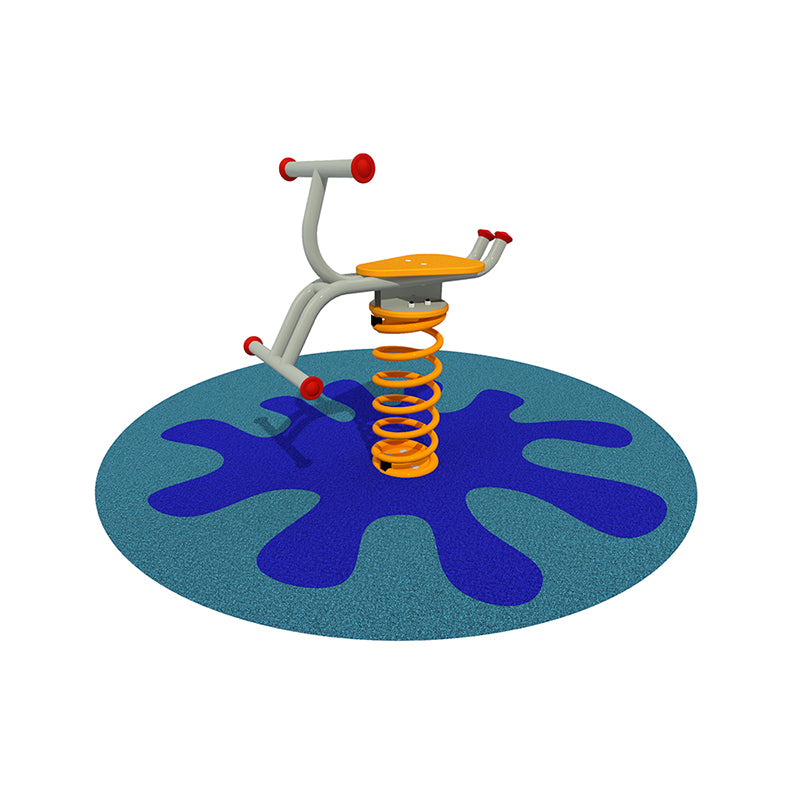

Giochipark Spring Game Star

Technical features:

MAXIMUM DIMENSION: cm 63x34x75h
FALL HEIGHT: 53 cm
AGE OF USE: 2-8 years
ASSEMBLY TIME: 1 h
NUMBER OF USERS: 1
MINIMUM SPACE: 300x300 cm
IMPACT AREA: 9 m2

Certified in compliance with European Standards EN 1176 by the German Institute TÜV - SÜD.
Made entirely of tubular steel, section Ø mm 30, electro-galvanized and oven-painted at 180°C, equipped with a seat in PEHD polyethylene, thickness mm 15, pantographed colored and with rounded edges. The structure is fixed on a spring in oven-painted steel, approved and complete with anti-finger crushing device. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard nut-cover elements in colored nylon. Ground anchoring attachments in hot-dip galvanized steel.

Scarica il manuale

-
